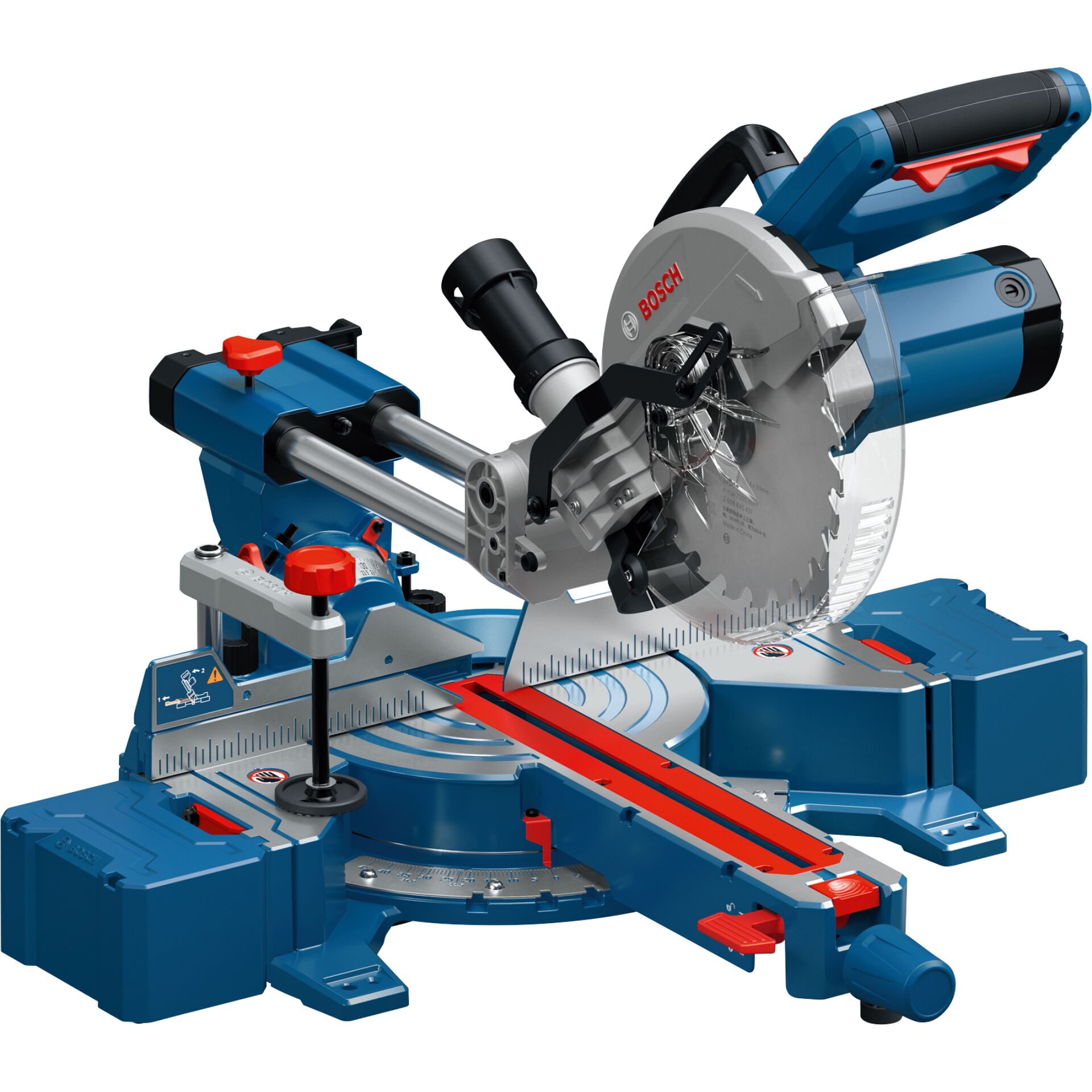

Bosch GCM305-216S mitre and crosscut saw, 216 mm, 220–240 V
Bosch
| Products ID: | 196743 |
|---|---|
| Manufactured by: | Bosch |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 4053423846225 |
Delivery options to:
Lithuania
The Bosch GCM305-216S mitre and crosscut saw cuts wood and aluminium, including repeated angled cuts. It is designed for stationary use on a construction site or in a workshop.
Visible cut line and accessible adjustment
The integrated LED indicates the cutting path directly on the workpiece without manual adjustment. The bevel adjustment is positioned at the front, making angle changes easier during work.
- Cutting capacity: 70 x 315 mm at 0°.
- Mitre range: up to 48° left and right.
- Bevel range: up to 47° left and 2° right for compound cuts.
- Blade size: 216 mm diameter with a 30 mm bore.
Power and workpiece support
The saw runs on a 220–240 V mains supply. Optional extendable workpiece supports increase the support surface for long materials. The listed scope of delivery includes 2 supporting blocks.
| Cutting capacity at 0° | 70 x 315 mm |
|---|---|
| Cutting capacity at 45° mitre | 70 x 215 mm |
| Cutting capacity at 45° bevel | 40 x 305 mm |
| Mitre setting | 48° left / 48° right |
| Bevel setting | 47° left / 2° right |
| No-load speed | 4 320–5 280 min⁻¹ |
| Saw blade diameter | 216 mm |
| Saw blade bore | 30 mm |
| Voltage | 220–240 V |
| Dimensions (width x length x height) | 49.3 x 74.7 x 39.1 cm |
| Weight | 15.3 kg |
| Colour | Blue / black |
| Power source | Mains |
| Type | Chop and mitre saw |
| LED cut line indicator | Yes |
| Handle | Yes |
| Mitre function | Yes |
| Tilt function | Yes |
| Workpiece materials | Wood and aluminium |
| Use configuration | Stationary |
| Bevel adjustment position | Front |
| Workpiece support extension | Optional extendable workpiece supports |
Are extendable workpiece supports included?
The extendable workpiece supports are optional accessories. The scope of delivery lists 2 supporting blocks.
Does the LED cut line indicator need manual adjustment?
No. The integrated LED shows the cutting path directly on the workpiece without manual adjustment.
