DeWalt DW743N-QS combination table and mitre saw, 250 mm
Dewalt
| Products ID: | 197326 |
|---|---|
| Manufactured by: | Dewalt |
| Availablity: | Ready to Order |
| Delivery Time | 7-15 business days |
| EAN: | 5035048161951 |
Delivery options to:
LithuaniaThe DeWalt DW743N-QS combines table saw, cross-cut saw and mitre saw functions. It runs on a 230 V mains supply and uses a 250 mm blade with a 30 mm bore.
Cutting adjustments
Set angular positions and 45° bevel and mitre adjustments support angled cutting, while the adjustable workpiece stop sets the workpiece position. At 90°/90°, the maximum cutting-depth dimensions are 140 × 68 mm and maximum cutting-length dimensions are 180 × 20 mm. This model has no sliding function or laser guide.
Construction and connections
- Power: 2000 W input and 1550 W output, with a maximum speed of 2850 RPM.
- Extraction: integrated triple extraction connection.
- Support: folding support legs and a handle; the saw weighs 37 kg.

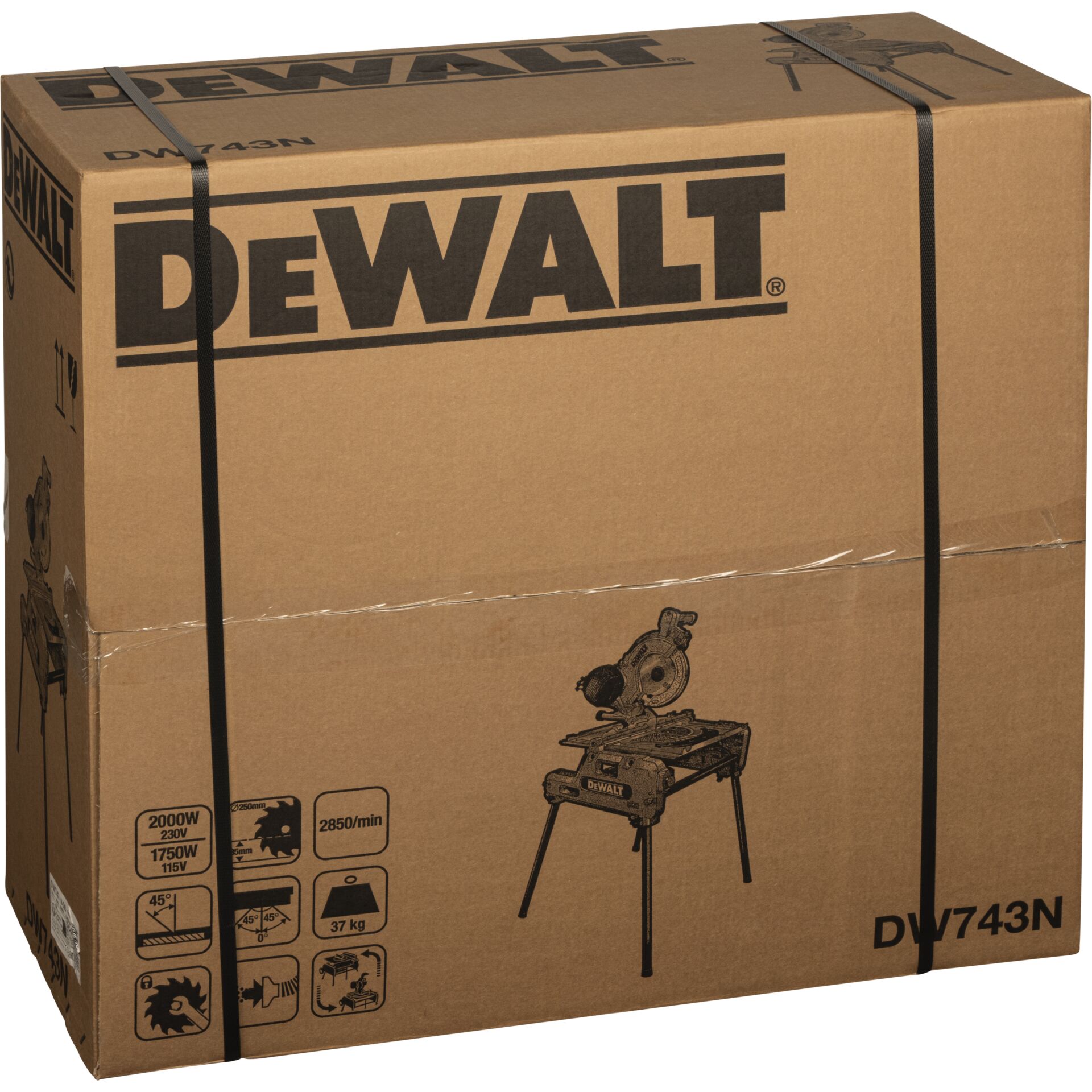

Included equipment
The package contains the combination saw, a 30-tooth carbide blade, rip fence, push stick, 4 removable supports, blade guard, assembly tool and workpiece clamp.
| Saw functions | Table saw, cross-cut saw and mitre saw |
|---|---|
| Angular positions | Set angular positions |
| Extraction connection | Integrated triple connection |
| Support legs | Folding |
| Workpiece stop | Adjustable |
| Input / output power | 2000 / 1550 W |
| Maximum speed | 2850 RPM |
| Blade diameter / bore | 250 / 30 mm |
| Bevel adjustment | 45° |
| Mitre adjustment | 45° |
| Maximum cutting depth at 90°/90° | 140 × 68 mm |
| Maximum cutting depth at 45°/90° | 95 × 70 mm |
| Maximum cutting depth at 90°/45° | 70 × 95 mm |
| Maximum cutting length at 90°/90° | 180 × 20 mm |
| Maximum cutting length at 45°/90° | 120 × 46 mm |
| Maximum cutting length at 90°/45° | 150 × 20 mm |
| Maximum cutting range at 90°/45° | 0–70 / 0–32 mm |
| Sound power level | 106.5 dB |
| Sound pressure level | 93.5 dB |
| Overall length | 770 mm |
| Material | Metal / plastic |
| Weight | 37 kg |
| Width | 70 cm |
| Colour | Black / yellow |
| Height | 75 cm |
| Depth | 67 cm |
| Power supply | Mains |
| Type | Chop and mitre saw |
| Cutting capacity at 0° | 70 mm |
| Handle | Yes |
| Sliding function | No |
| Laser guide | No |
| Mitre cutting function | Yes |
| Tilt function | Yes |
| Rechargeable batteries included | No |
| Voltage | 230 V |
Does this saw have a sliding function or laser guide?
No. This model has neither a sliding function nor a laser guide. It offers 45° bevel and mitre adjustments.
Are a blade and workpiece accessories included?
Yes. The package includes a 30-tooth carbide blade, rip fence, push stick, workpiece clamp, 4 removable supports, blade guard and assembly tool.
