Habotest HT107D socket tester with digital display
The Habotest HT107D socket tester uses a digital display and LED indicators to show socket connection status. It detects missing earth and provides a push-button RCD test.
Measurements and connection status

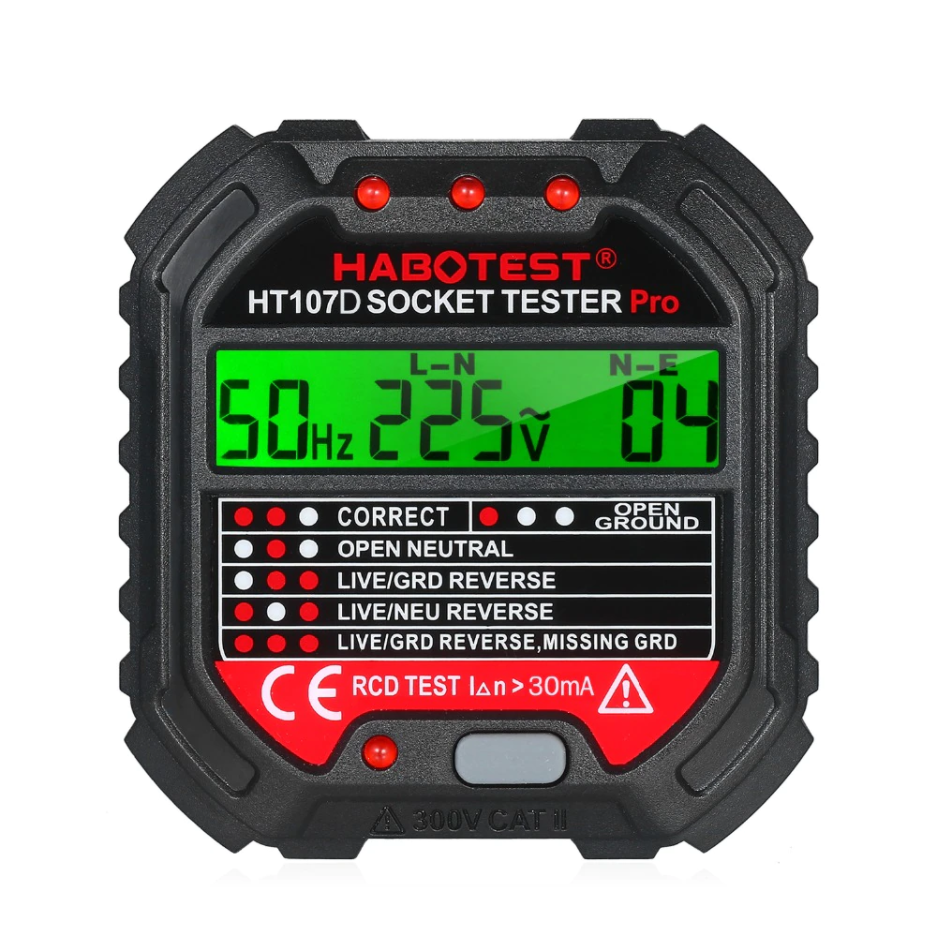

The backlit LCD displays measurement results, while LED combinations indicate connection conditions and detected abnormalities. Voltage measurement covers 48–250 V at 45–65 Hz, with a stated accuracy of ± (2.0% + 2).
- Wiring indication: LED patterns identify conditions such as correct connection and missing earth.
- RCD testing: activated by a button, with a specified test current of > 30 mA.

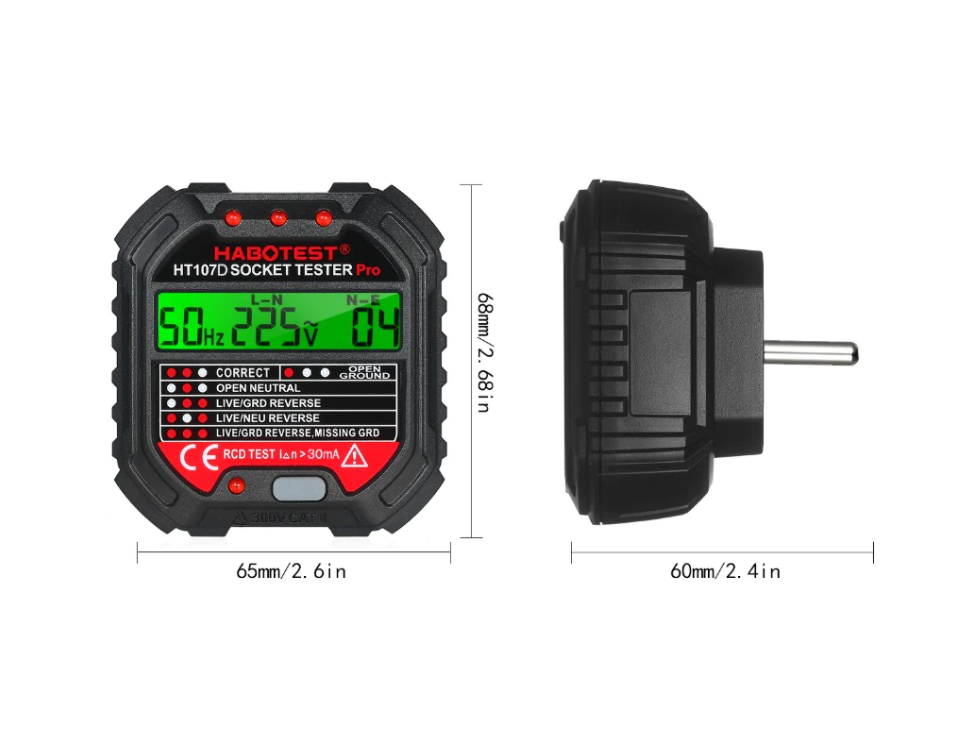

- Compact housing: dimensions of 65 × 62 × 58 mm make it easy to store in a bag.
Application and operating conditions

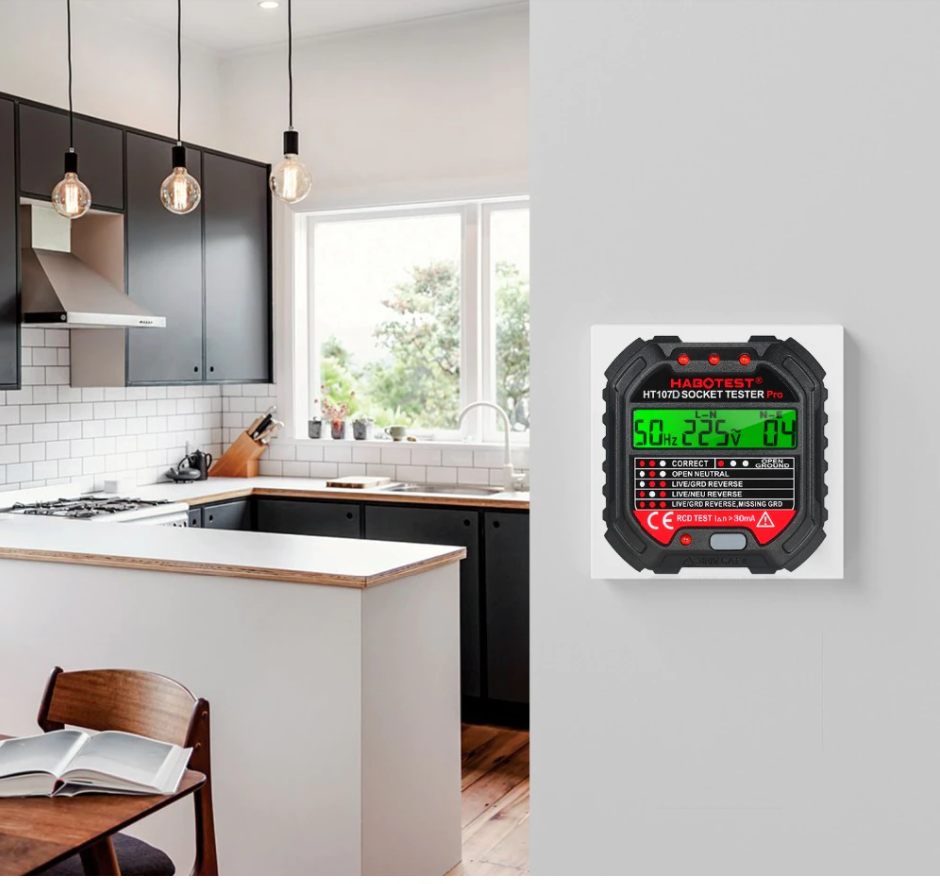

The tester can be used to check wall sockets and power strips at home, in offices and in other indoor settings. RCD operating voltage is 220 V ± 20 V, while GFCI operating voltage is 110 V ± 20 V. The working environment is 0–40 °C with 20–75% relative humidity.
| Brand | Habotest |
|---|---|
| Model | HT107D |
| Material | Fireproof ABS |
| Voltage range | 90–250 V |
| RCD testing | > 30 mA |
| Voltage measurement | Yes, 48–250 V / 45–65 Hz |
| LCD | Yes |
| Backlight | Yes |
| Safety and standards | EN61010-1, -2-030; EN61326-1; CAT II 300 V |
| Dimensions | 65 × 62 × 58 mm |
| Weight | 74 g |
| Accuracy | ± (2.0% + 2) |
| RCD operating voltage | 220 V ± 20 V |
| GFCI operating voltage | 110 V ± 20 V |
| Working environment | 0–40 °C, 20–75% RH |
| Storage environment | -10–50 °C, 20–80% RH |
| EAN | 5907489607827 |
|---|
How does the tester indicate missing earth?
Specific combinations of LED indicators show connection conditions, including missing earth.
Can it test an RCD?
Yes. The RCD test is activated by a button. The specified test current is > 30 mA, and the RCD operating voltage is 220 V ± 20 V.
