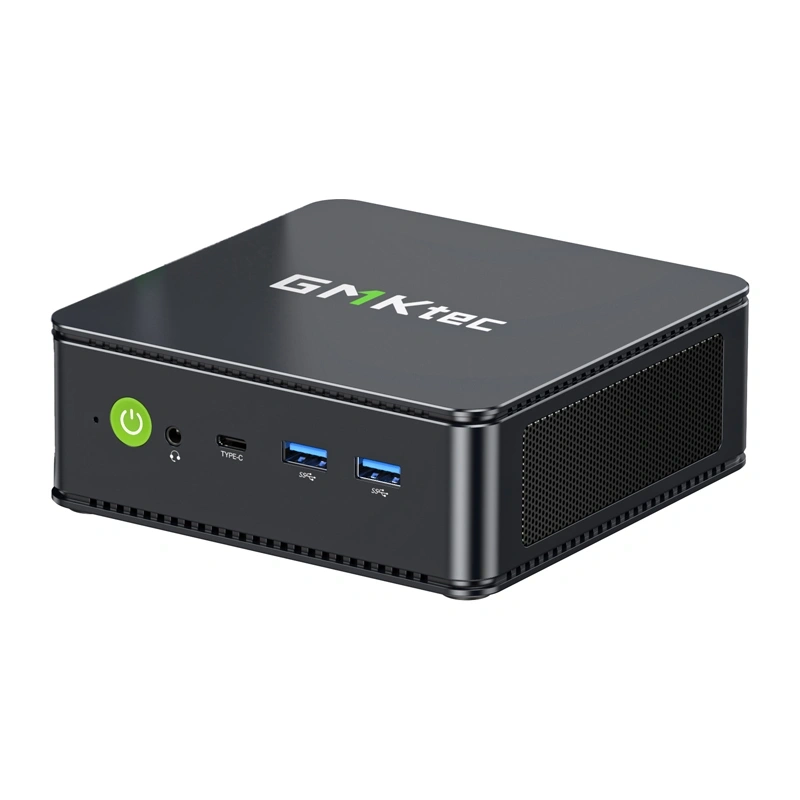

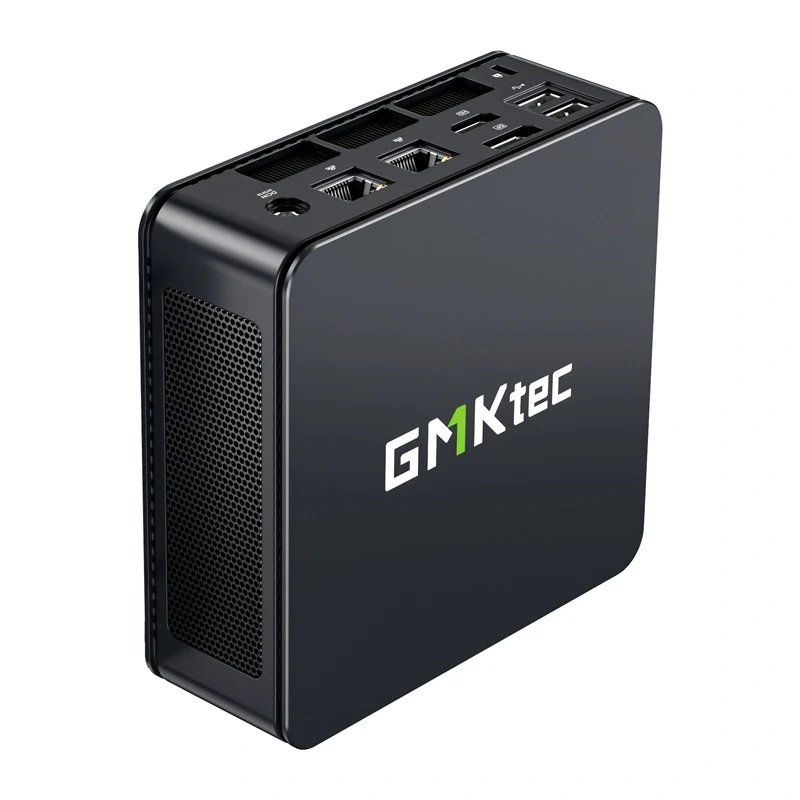

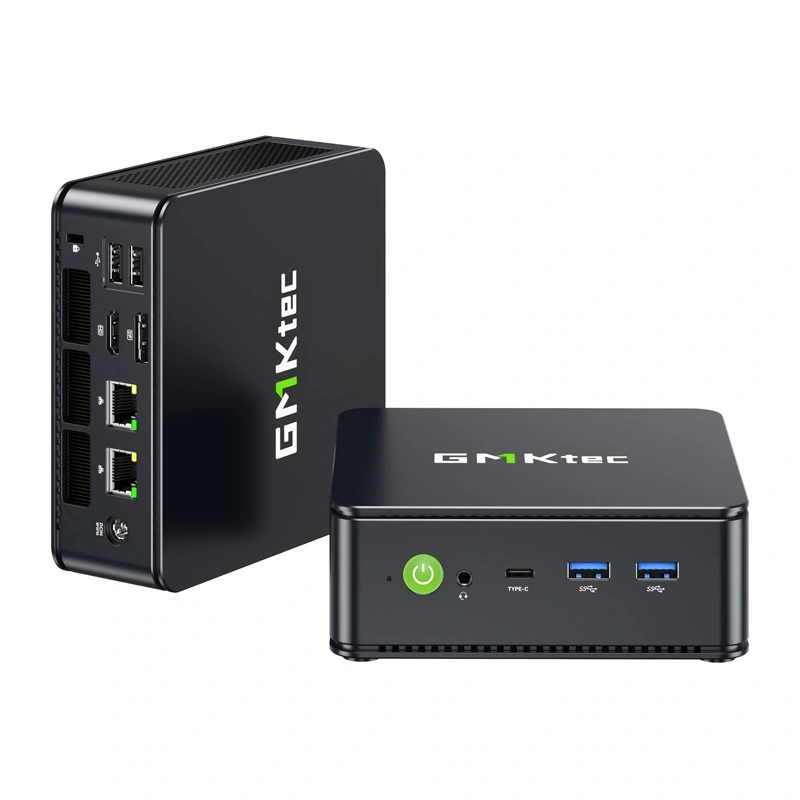

GMKtec M5S Mini PC Ryzen 3 5400U 16GB 256GB SSD Gray
Gmktec
| Products ID: | 196720 |
|---|---|
| Manufactured by: | Gmktec |
| Availablity: | SOLDOUT! |
| EAN: | 6972570965727 |
The GMKtec M5S is a compact desktop mini PC powered by an AMD Ryzen 3 5400U processor and integrated Radeon Graphics, tailored for office workloads and multimedia tasks. It comes pre-installed with 16 GB of RAM and a 256 GB SSD.
Performance and Memory Expansion
Equipped with 4 cores and 8 threads, the AMD Ryzen 3 5400U reaches boost clock speeds up to 4.0 GHz with 8 MB of L3 cache. The chassis houses two SO-DIMM slots supporting up to 64 GB of DDR4 memory, alongside two M.2 2280 slots for expansive SSD storage.
High-Speed Networking and Triple Display
Dual 2.5 Gbps Ethernet ports powered by the Realtek RTL8125 controller ensure responsive wired networking, complemented by Wi-Fi 6E and Bluetooth 5.2. With HDMI 2.0, DisplayPort 1.4, and a full-featured Type-C connector, the M5S supports simultaneous output to three external displays.
Thermal Control and VESA Mounting
A dual-intake 360° airflow design with intelligent fan control manages operating temperatures under sustained loads. The included VESA bracket enables monitor-back mounting to help maintain an organized workspace.
| Manufacturer | GMKtec |
|---|---|
| Model | M5S |
| Processor | AMD Ryzen™ 3 5400U, Ryzen 5000 series, 4 cores, 8 threads, TSMC 7 nm FinFET FP6 process technology, base frequency 2.6 GHz, maximum 4 GHz; 2 MB L2 cache / 8 MB L3 cache |
| Processor model | AMD Ryzen™ 3 5400U |
| Processor socket | TSMC 7 nm FinFET technology, FP6 package |
| Graphics card | AMD Radeon™; 6 cores, 1600 MHz |
| Included RAM | 2 SO-DIMM modules; DDR4 3200 MT/s; 16 GB/32 GB |
| RAM expansion | Expandable: 2 SO-DIMM modules; max. 64 GB (2 modules of 32 GB each) |
| Pre-installed storage | 2 M.2 2280 SSDs; 256 GB SSD with PCIe 3.0 x4 interface included |
| Storage expansion | up to 8 TB (single drive) |
| Display | None |
| Video Output (Combined) | Single HDMI + DP + Type-C port; (supports up to 8K resolution / DP output) |
| Wi-Fi | 802.11a/b/g/n/ac/ax – the RZ616 model supports the Wi-Fi 6E standard |
| Wi-Fi speed | Max. 2.4 Gb/s |
| Bluetooth | BT 5.2 |
| Battery | Built-in button-cell battery |
| Power adapter | DC input 19 V/3.42 A |
| USB-A (10 Gb/s) | 2 x USB 3.2 (Gen 2) 10 Gb/s |
| Type-C port | 1× Type-C (USB 3.2 Gen 2 10 Gb/s, PD 100 W, 4K video output at 60 Hz) |
| Audio | 1× 3.5 mm jack, CTIA |
| Reset | 1× Reset pin: Acts as a reset signal when power is connected; clears CMOS memory when power is disconnected |
| Power Button | 1× Power button with white LED indicator |
| USB-A (480 Mb/s) | 2 USB 2.0 ports, 480 Mb/s |
| HDMI output | 1× HDMI 2.0 (4K at 60 Hz) |
| DisplayPort output | 1× DisplayPort 1.4, supports a maximum resolution of 8K at 60 Hz |
| Charging port | 1*DC IN 5525 |
| Ethernet port | 2*LAN (RJ45) 2.5 Gb/s Realtek RTL8125 |
| Security Lock | Supported |
| Keyboard | Supports external connection |
| Indicator | White power indicator |
| Dimensions | 128.8 × 127 × 47.8 mm |
| Weight | 528 g |
| Package Dimensions | 190 × 190 × 110 mm |
| Package Weight | 1 440 g |
| Carton/Dimensions/Weight | 8 units/carton 400 × 390 × 240 mm/12.2 kg |
| Product color | Gray |
| Material | Plastic |
| Operation | Keyboard and mouse |
| Operating system | Compatible with Windows 11 Pro / Linux |
| Supported languages | English by default (Simplified Chinese, Traditional Chinese, English, French, Thai, Spanish, Korean, Japanese, German, Hebrew, Russian, Portuguese, Arabic) |
| Battery Life | External Power Source |
| System Settings | Press the power button to turn on the device |
| Applications | Home users / small and medium-sized businesses / smart manufacturing / creative design / smart retail / medicine / education / live streaming, etc. |
What is included with the GMKtec M5S Mini PC?
The box contains the GMKtec M5S Mini PC, power supply, VESA mount, HDMI cable, and user manual.
How many external displays does the M5S support?
It supports up to three displays simultaneously via HDMI 2.0, DisplayPort 1.4, and the multi-function Type-C port.
Can the RAM and internal storage be upgraded?
Yes, memory can be expanded up to 64 GB DDR4 across two SO-DIMM slots, and storage can be expanded using two M.2 2280 SSD slots.
